Arrays Settings

Customize Presets for each of the array types

How to get to the settings menu!

The array presets start with selecting a default module. If you are primarily using one type of module at a time for all installs, this would be worth doing to save time in design.

Orientation - Select if modules will fill in portrait or landscape.

Height - Determine how high off of the segment the modules will be. Current default should be 6 inches (except for ground mounts) to account for racking.

Module Spacing - Distance between modules within an array. Column and Row can be set to different amounts, moving in 1" intervals starting at 0".

Array Spacing and Layout - Primarily for ground mounts, this feature helps divide large areas into smaller array groups for design/terrain purposes, allowing you to set their size and spacing.

 arrays settings

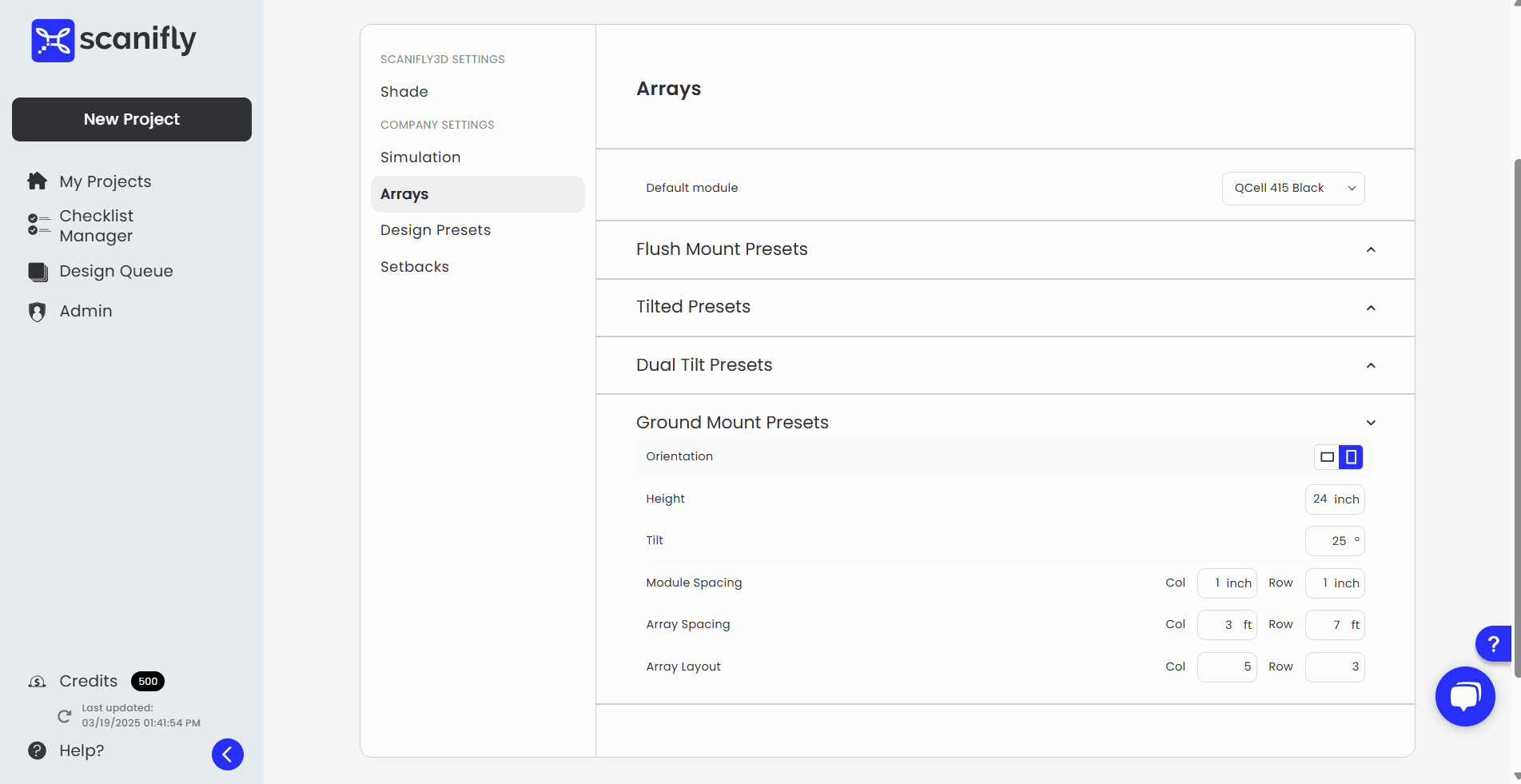

In the GIF above, I have saved my settings so that ground mounts will appear in groups of 5x3 arrays that have 3' of space side by side, and 7' of space front to back.

You can choose different settings for Flush Mount, Tilted Mount, Dual Tilt, and Ground Mount arrays.
