Interacting with Viewsheds

Select, Refresh, Delete, Toggle between ASA and TSRF Coloration

In the latest update to viewsheds, you now have the ability to select, refresh, delete and toggle between ASA and TSRF coloration.

Select Viewsheds

You can now select all manually added or automatically generated viewsheds on a segment. Click the check box at the top of the viewshed list to select all. Additionally, you can deselect all or some by clicking the respective checkboxes.

select_viewsheds

Refresh Viewsheds

To refresh viewsheds, click the select all checkbox at the top of the viewsheds lists. Click the dropdown arrow next to the select all checkbox. Click Refresh, then the viewshed processing will begin.

refresh_viewsheds

Delete Viewsheds

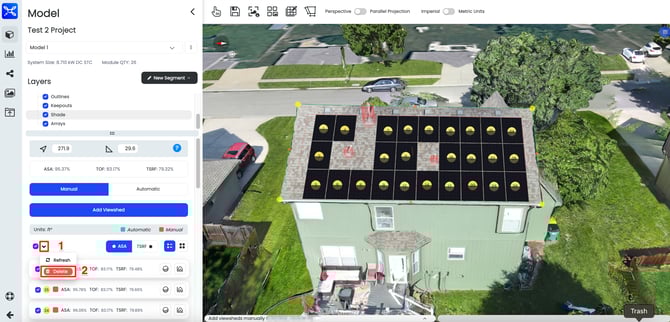

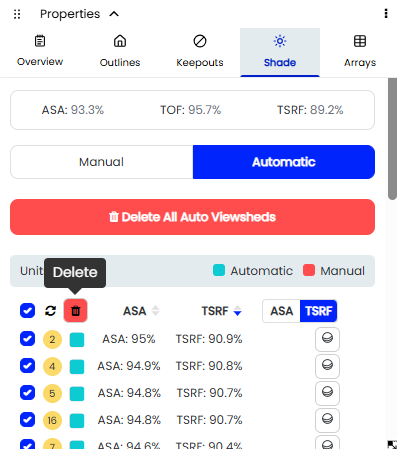

To delete all viewsheds, click the select all checkbox at the top of the viewsheds lists, then click the dropdown arrow and select "Delete".

delete_viewsheds

ASA and TSRF Viewshed Value Coloration

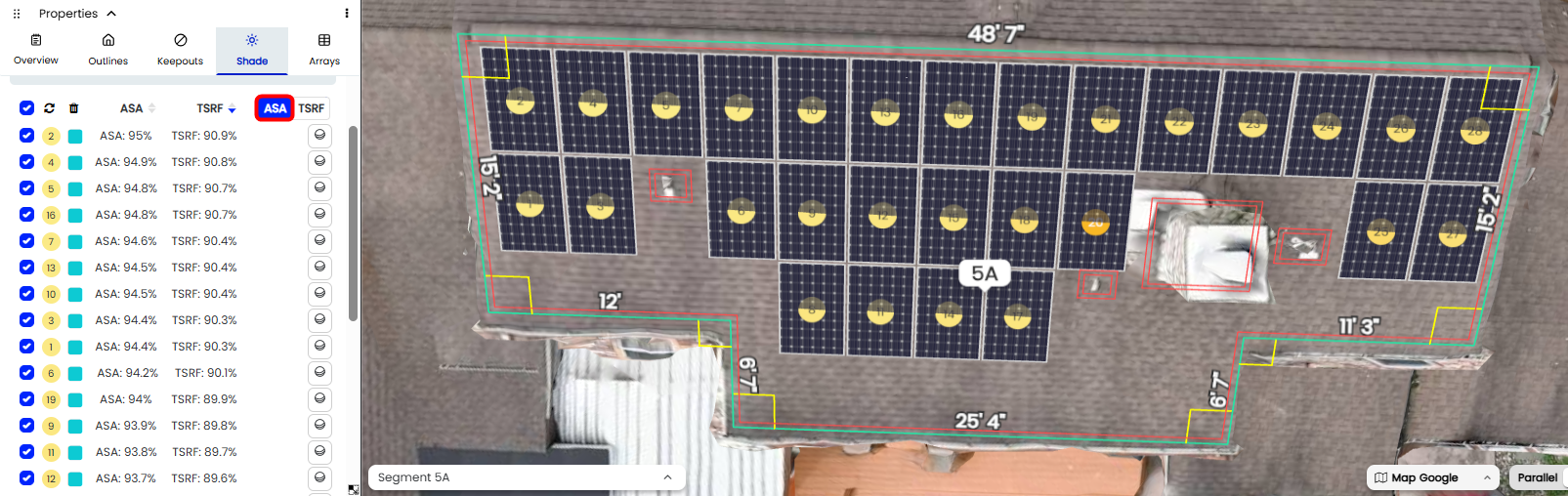

The ASA | TSRF toggle allows you to see the coloration that aligns with the value of ASA or TSRF depending on what you select. Toggle back and forth to see the difference.

🚧 Viewshed Default 🚧

The viewsheds default to showing the color of the ASA value.

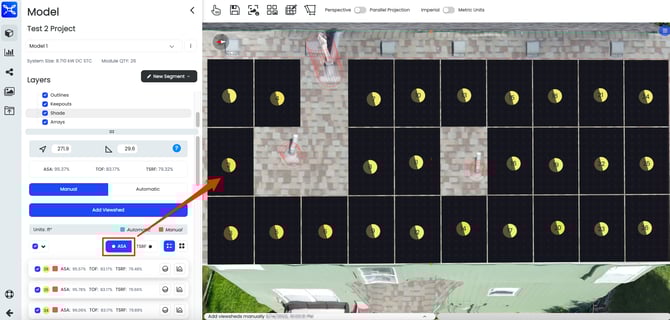

asa_viewshed_coloration

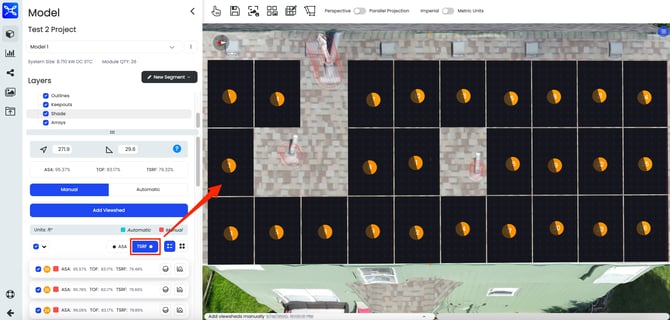

tsrf_viewshed_coloration
