Modifying Arrays

Adjusting arrays or modules after initial placement

Macro Adjustments

  1. Show or hide an array by checking or unchecking the blue box.
  2. Show the module type chosen for the particular Segment that you're working on.
  3. Fine tune array specifications by toggling this option on. Review the Array Details section below for further information.
  4. In order to make manual adjustments to an array or add a module, you will need to be in the Manual Array Builder Mode. If you change from Manual mode to Dynamic mode, your manual adjustments will be completely removed. Please use caution!
  5. Prior to placing an array or individual model, you can toggle back and for between landscape and portrait mode to determine the best orientation for your module placement.
  6. Within the Array Tools, you can perform multiple actions that allow you to manipulate the whole array or single modules. Once you select the whole array or an individual module, you will then activate the ability to cut, copy, paste, or delete the selected modules.

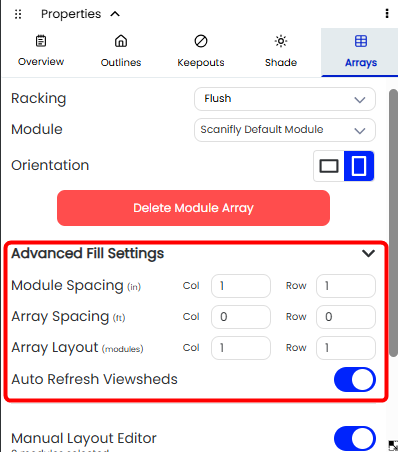

Array Details

Within the Array Details section, you have the options to switch your racking type, spacing between modules, and the height your racking system is from the surface plane.

Review System Size and Dial in System Parameters

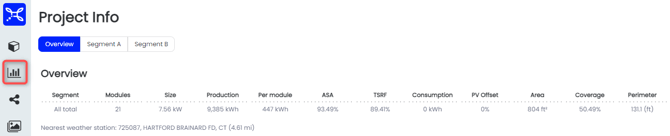

After clicking on the Project Info icon (the bar graph!), you will be presented with the data Overview of the PV System that has been built. Underneath the data, you will find graphs detailing your PV System's TSRF, ASA, total monthly kWh, and production by segment.

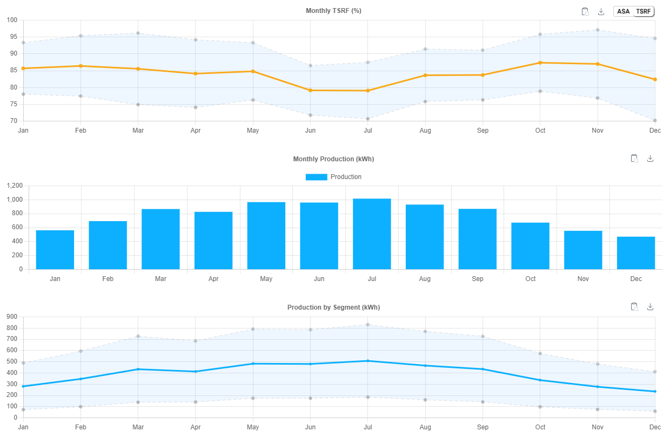

For the Monthly TSRF/ASA and Production by Segment, there is an average given, depicted by the bolder line in the center.

When clicking on a specific Segment that has been built, you will then be presented with additional details about the array and you will now have to opportunity to modify system parameters to better align with the actual environment the PV System will be in. This is also where you can select one of your preset simulation settings if you use a specific microinverter or panel that has unique parameters.


You can also review the viewsheds of each segment individually here.
