  2. Scanifly Remote Design

Remote Design - Video Tutorials

Follow along with a video or support link for a full Remote Design from A-Z!

Topic

Video

Support Doc

Project Creation and Interface Overview Project Creation Overview
Load and Align Reference Layers Reference Layers Reference Layers
Draw House Roof Segments Creating Outlines Creating Outlines
Define Keepout Areas Creating Keepouts Creating Keepouts
Draw Nearby Structures* (If needed) Neighbor Shading/3D Shading
Add trees* (or toggle Lidar/Google3D) Import Trees Import Trees
Place and Adjust Solar Panels Creating Arrays Creating Arrays
 Review Project Data & Export Review Project Details



1. Project Creation and Design Space Overview (11 min):



  • Start a new project, assign a name, set the location, and add optional customer details.
  • Familiarize yourself with the design space, help resources, and tools.
  • Video: Project Creation Overview

2. Load & Align Reference Layers (2 min):

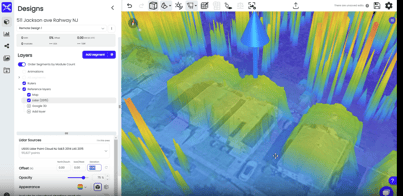

  • Toggle on the LiDAR layer, adjust its elevation, and align it with the base map.

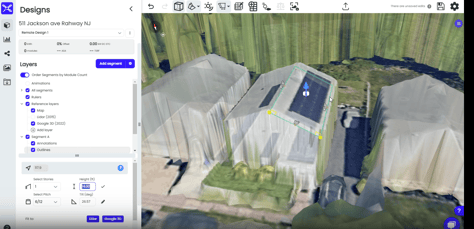

  • Load the Google 3D layer and compare its alignment with LiDAR.

3. Draw House Roof Segments (3 min):


  • Using LiDAR and/or Google 3D as a guide, draw all segments of the main house roof.
  • Adjust height and pitch accurately, utilizing the snapping feature.

4. Define Keepout Areas (4 min):

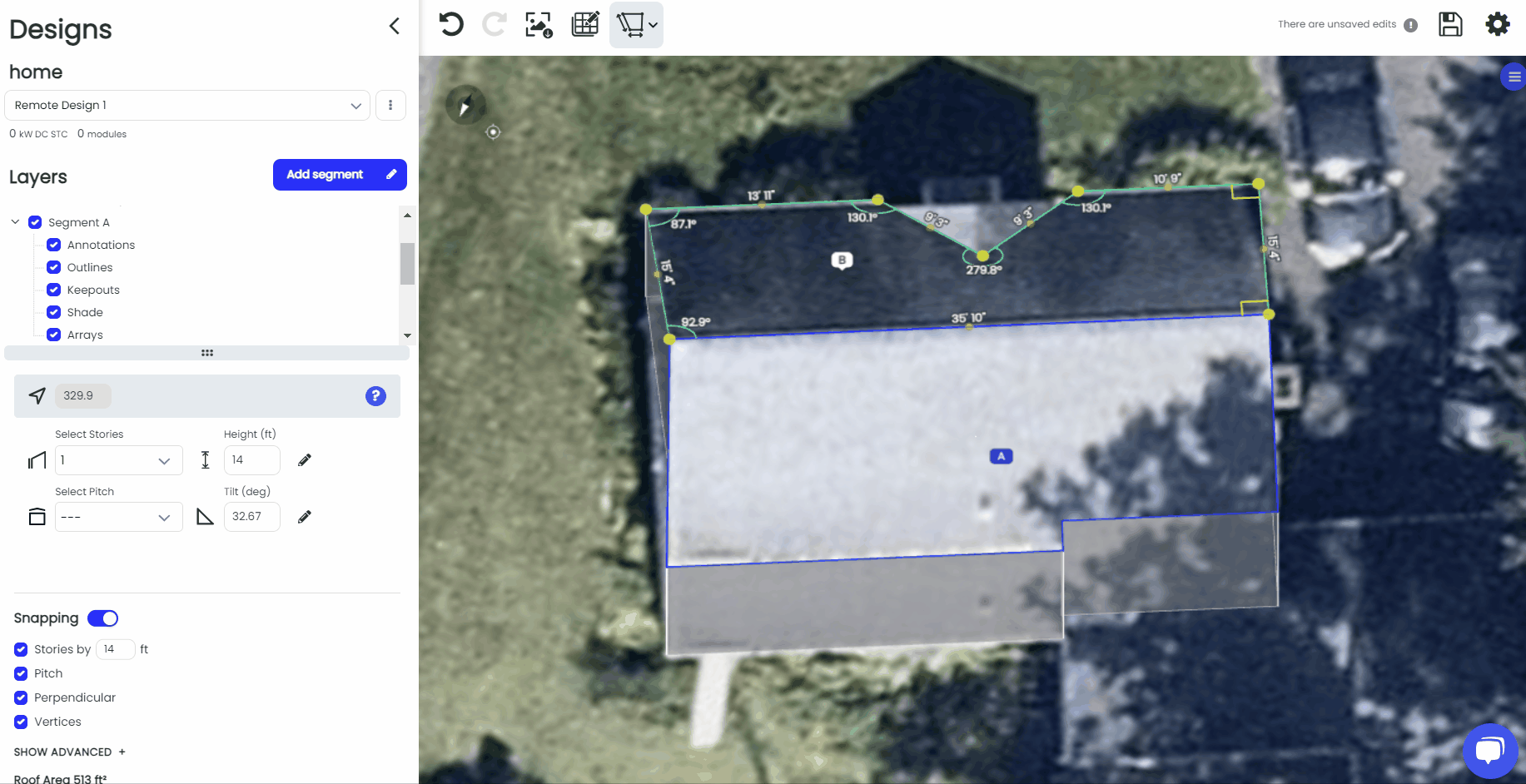

adding keepouts in prelim

  • Draw keepouts on roof surfaces for obstructions (vents, chimneys) and setbacks.
  • Use appropriate shapes and size them correctly. Note: Add fire setbacks manually.
  • Video: Fill in Keepouts
  • Docs: Creating Keepouts

5. Draw nearby houses if they are large and will cast shade  (2 min):

  • Identify potential shading from nearby structures.
  • Either:
    • a) Draw neighboring roof surfaces (repeating steps 3 & 4), OR
    • b) Use the Google 3D layer directly for shading analysis in the next step (recommended for efficiency).
  • Video: Neighbor Shading/3D Shading

6. Add Trees for Shading OR toggle Lidar/Google3D Shade (4 min):

  • If trees cause significant shading

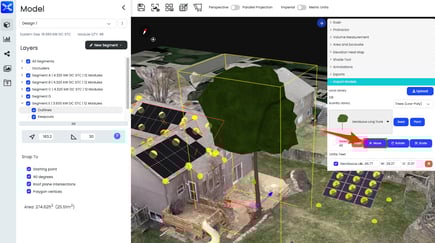

    • Add them using the Import trees library:
    • OR If lidar/google 3d layers look accurate enough for the current shading
      • Toggle Lidar / Google 3D Setting for 'Include in viewshed shading analysis' setting. https://help.scanifly.com/reference-layers
      • Now that layer is used for shading and you only need to import trees if not shown in that layer

7. Place and Adjust Solar Panels (5 min):

  • Lay out solar panels on the available roof space.

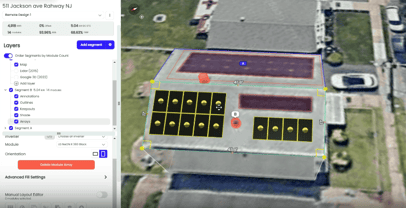

    • Fill Modules and Viewsheds for layout and production
    • Default mode is "Dynamic" Can adjust and fill roof
      • Can toggle into "Manual" mode for full control over your layout
  • Video: Adjust Solar Layout
  • Docs (Pro):Creating Arrays

8. Review Project Data & Export (2 min):

  • Review the completed design and key project statistics (output, system size, module count).

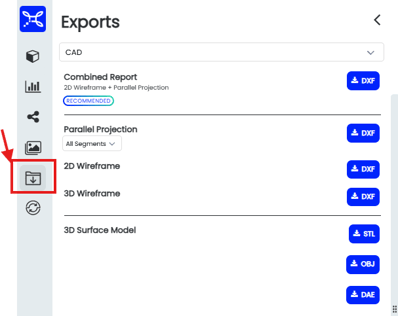

  • Access and export necessary data, including shade reports for proposals.
  • Video: Review Project Details
