Setbacks Settings

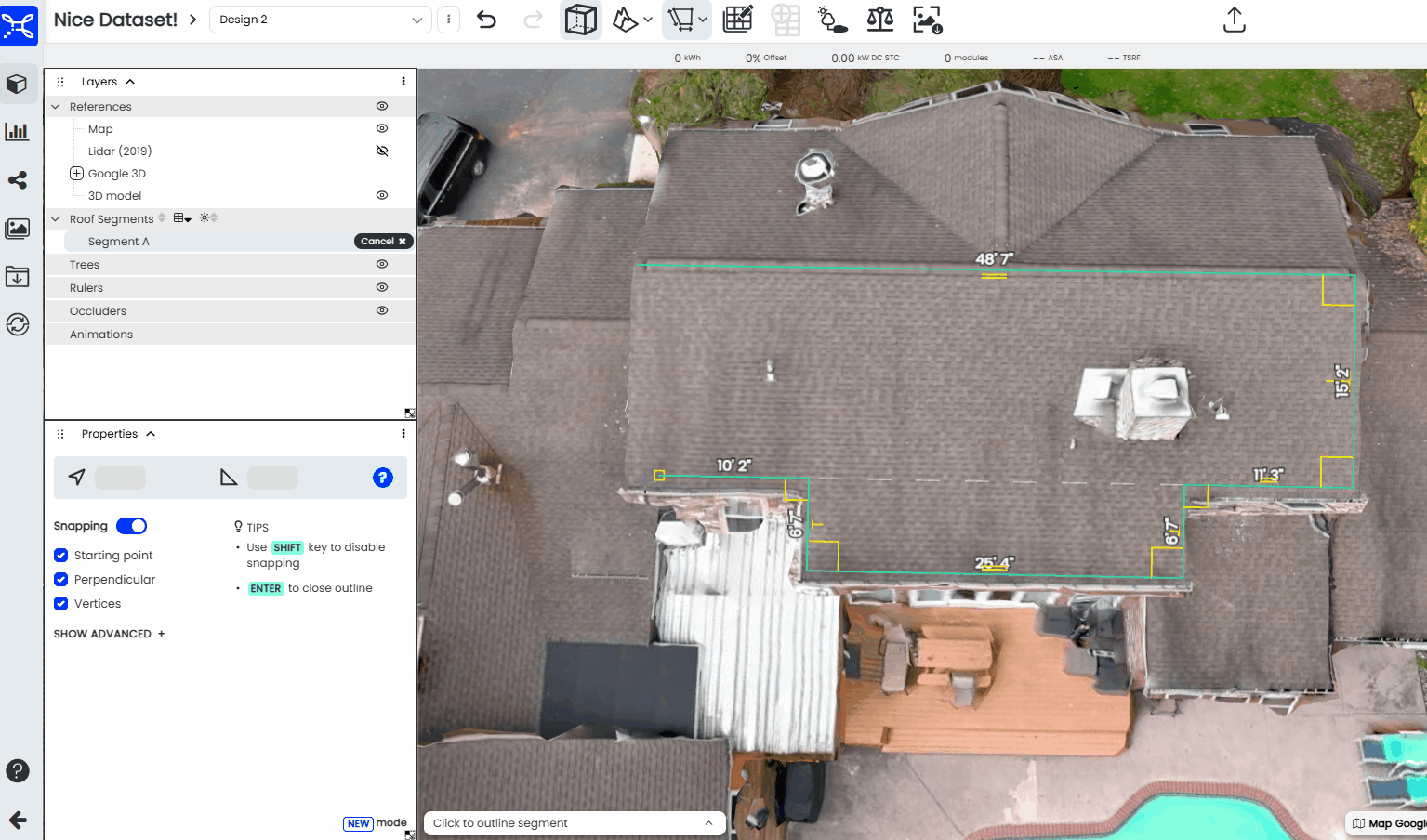

These settings will create automatic setbacks on the segments and keepouts that you place in your designs.

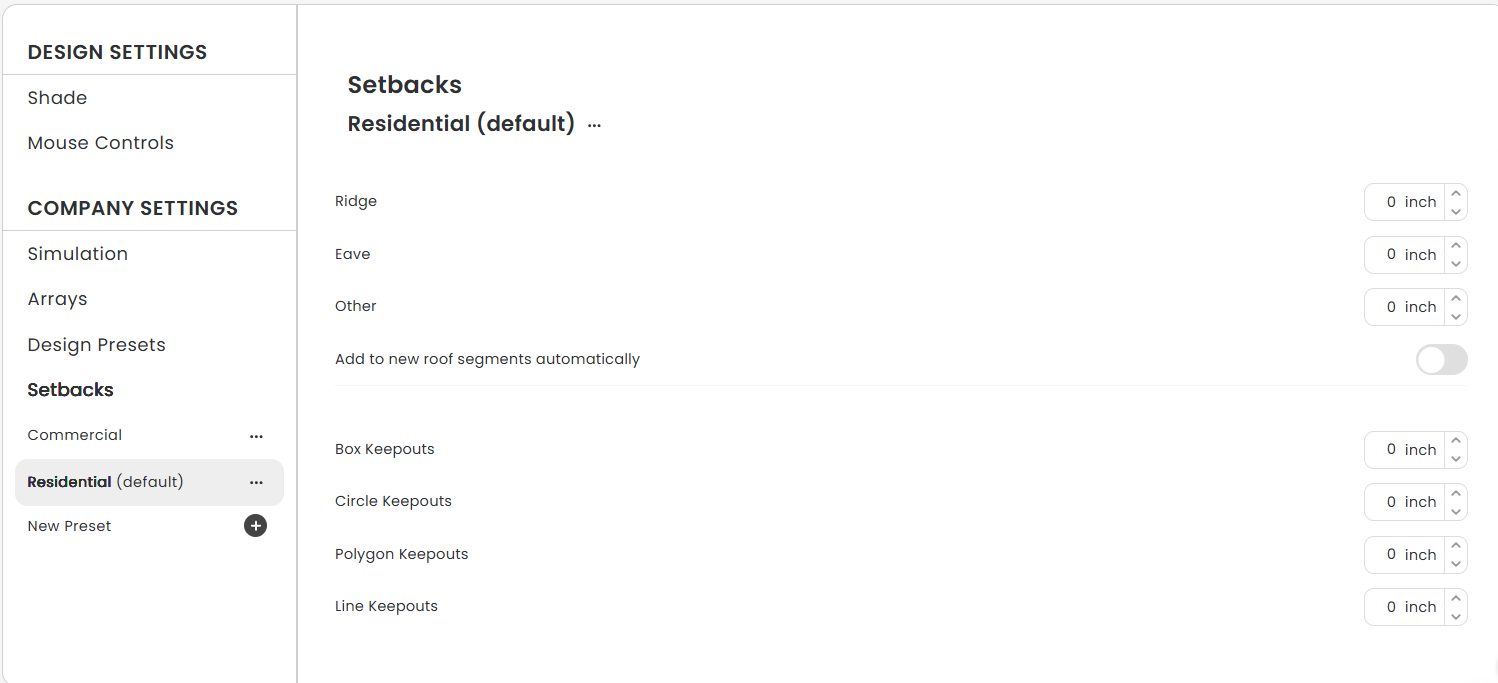

Ridge/Eave/Other -This preset sets automatic fire setbacks. Ridge and eave segment lines use the first two fields; all other segment lines use the third field.

Auto-Add Toggle - Toggling this on will add the values added above to your completed segments automatically.

Keepout Setbacks - You can place values for Box, Circle, Polygon, and Line keepouts here that will automatically appear upon placement within the design

Setback settings will vary based on a multitude of factors, so we have presets! Set the default in the settings menu, and then swap them around within the design as needed.
